| Parameter | Description |

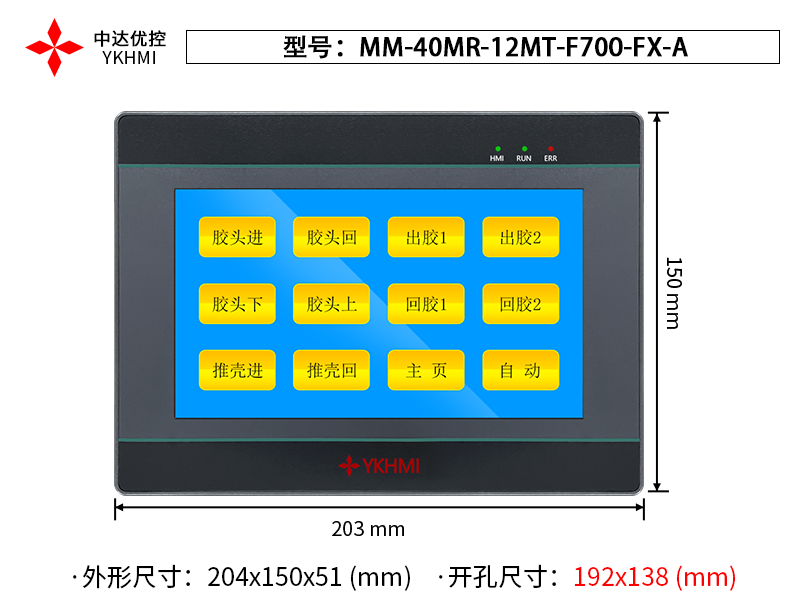

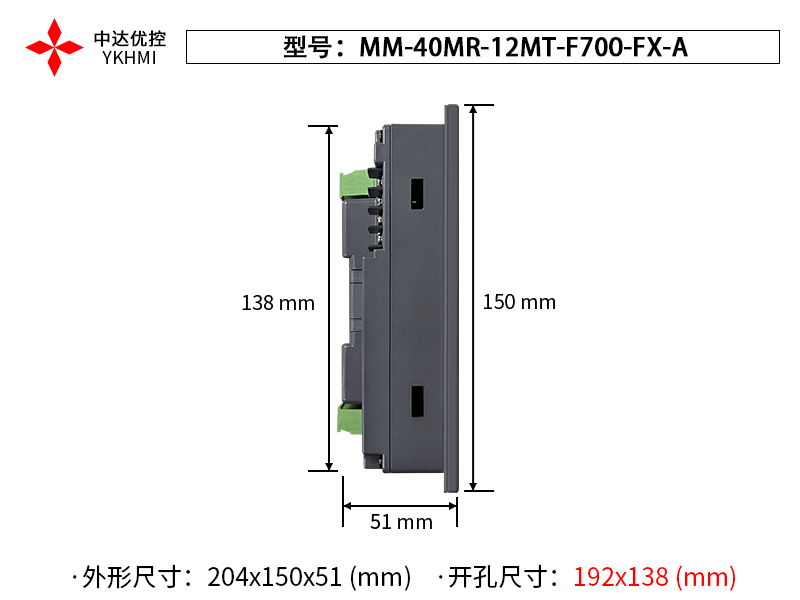

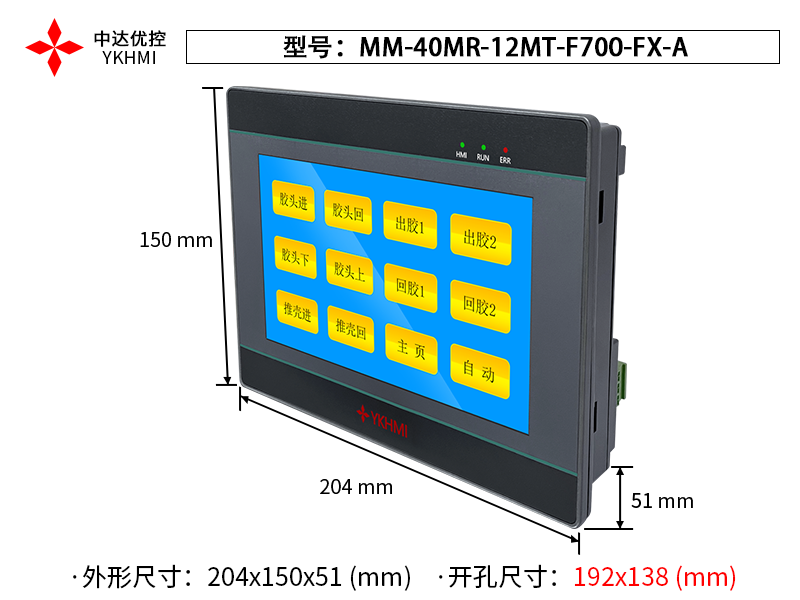

| Product Model | MM-40MR-12MT-F700-FX-A |
| Execution speed | LD(0.54us)，MOV(3.4us) |
| Programming language | Instruction + Ladder Diagram + SFC |
| Program capacity | 2000 (steps) |

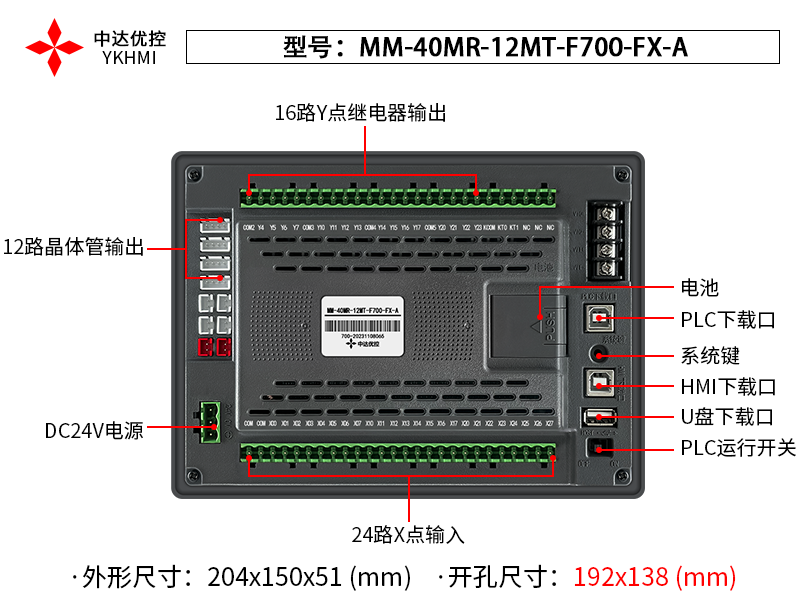

| Soft Component | X | External input relay | X00-X07，X10-X17，X20-X27. | total 24 input |
| Y | External output transistor | Y00-Y03，Y30-Y37 | total 12 Y-points |
| External output relay | Y04-Y07，Y10-Y17，Y20-Y23 | total 16 Y-points |
| M | Auxiliary relay | General use | M0-M383, total 384 points | total 768 points |
| Power-off retention | M384-M511, total 128 points |
| Special use | M8000-M8255, total 256 points
Partially for power-off retention |
| T | Timer | 100MS T0-T31 | T0-T31, 32 points | Total 64 points |
| 100MS/10MS T32-T62 | T32-T62, 31 points |
| 1ms | T63 (accumulative type), 1 point |
| C | Counter | 16-bit up counter | C0-C15, 16 points C16-C31, 16 points | Total 56 points |
|
| 32-bit up/down counter | C235-C245, 11 points C224-C231, 8 points C251-C255, 5 points |
|
| S | Step point | Initialization use | S0-S9, 10 points | Total 128 points |
| Home return use | S10-S19, 10 points |
| | S20-S127, 108 points |
| DVZ | Data register | D128-D255 128 points retentive D1000-D2499 1500 points for file use |
| D8000-D8255 256 points special use |
| V7-V0 Z7-Z0 16 points indexing use, D0-D127 128 points |
| | Nested pointer | N0-N7 8 points for master control P0-P63 64 points for jump subroutine, branch pointer |
| I00-I50 6 points input interrupt pointer |
| Constant | K | 16-bit -32768 ~ +32767 |
| 32-bit -2147483648 ~ +2147483647 |
| H | 16-bit 0-FFFFH 32-bit 0-FFFFFFFFH |
| Communication port | COM1: USB download, common program editing communication port |
| COM2: Communication with touch screen |
| Real-time clock (RTC) | Year, month, day, weekday, hour, minute, second |
| Analog | AD0 analog input 0 (0-10V corresponds to 0-4095) | D110 |
| AD1 analog input 1 (0-10V corresponds to 0-4095) | D111 |
| AD2 analog input 2 (0-10V corresponds to 0-4095) | D112 |
| AD3 analog input 3 (0-10V corresponds to 0-4095) | D113 |
| 2-channel temperature thermocouple (0~1000℃) | D114 D115 |
| DA0 analog output 0 (0-10000 corresponds to 0-10V) | D126 |
| DA1 analog output 1 (0-10000 corresponds to 0-10V) | D127 |
